Wave soldering flux with powerful wetting

JS-E-15X

Ultimate “coating performance” and “wettability”

Flux facilitates uniform coating

JS-E-15X easily spreads over the substrate and forms a uniform flux layer, so it completely removes oxide films from the surface and achieves uniform solderability for through hole filling, etc.

■KOKI TECH EQSS-350SD

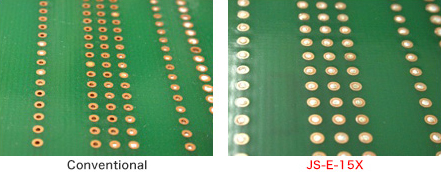

Excellent through hole filling

JS-E-15X easily spreads over the substrate and forms a uniform flux layer, so it completely removes oxide films from the surface and achieves uniform solderability for through hole filling, etc.

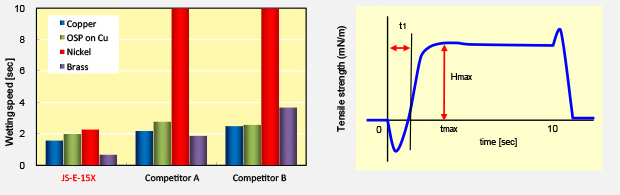

■Meniscograph Test

Excellent through hole filling

All flux functions during pre-heating and soldering were optimized. Thorough improvements were made on the through hole filling performance that is greatly represented in its solderability.

■Meniscograph Test

Product Performance Table

Product Name
JS-E-15X
Product Category
Liquid Flux for Wave / Selective Soldering
Solid Content(%)
14.8
Specific gravity (at 20℃)
0.822
Halide content(%)
0.089
Flux Type
ROM1 (IPC J-STD-004B)
Application
Spray / foam
Purpose of Use
Wave soldering
