Wave soldering flux with high cleaning performance of the pallet mask

JS-E-15L

Improved cleanability for masking pallets Allowing easier maintenance

Further reduction of pallet cleaning time

Masking pallets require cleaning after every use. With improved cleanability, a significant reduction in pallet mask maintenance time and higher usability was realized.

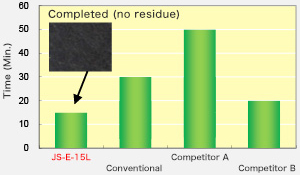

■Required time for completion of cleaning

Prevents flux residue threading

There is little stickiness when removing pallets, resulting in significant reduction of threading. JS-E-15L effectively prevents adhesion of flux to components.

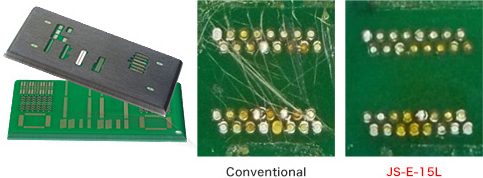

■After pallet mask separation

High wettability and excellent solderability

JS-E-15L comprehensively improves solder wettability and workability and achieves excellent solderability for substrates even with extensive heat history, such as attaching connectors after double-sided reflow.

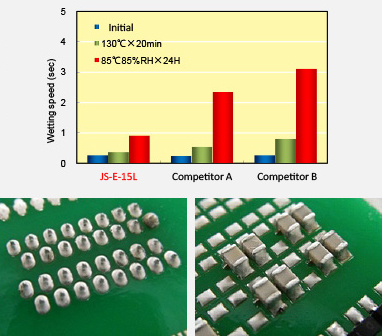

■Meniscograph test & Sample pictures

Product Performance Table

Product Name
JS-E-15L
Product Category
Liquid Flux for Wave / Selective Soldering
Solid Content(%)
15.0
Specific gravity (at 20℃)
0.823
Halide content(%)
0.063
Flux Type
ROL1 (IPC J-STD-004A)
Application
Spray / foam
Purpose of Use
Wave soldering
