Rosin-free wave soldering flux with ultra low residue

JS-EU-01

Rosin-free achieves aesthetic finish.

Less solid content for a beautiful finish

JS-EU-01 is made by special preparation which doesn't use rosin at all, realizing a beautiful finish where flux residue after soldering is hardly visible.

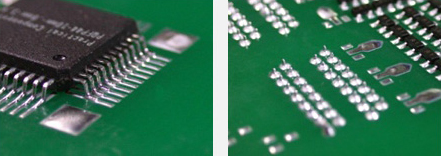

■After Soldering

Excellent workability even with long dipping

By minimizing outflow of solid content due to the heat and pressure of waving, the rosin-free flux remains active until the end of the process. Realizes amazingly consistent solder workability.

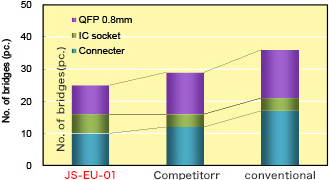

■Bridging test

Product Performance Table

Product Name
JS-EU-01
Product Category
Liquid Flux for Wave / Selective Soldering
Solid Content(%)
4.0
Specific gravity (at 20℃)
0.814
Halide content(%)
0
Flux Type
ORL0 (IPC-J-STD-004A)
Application
Spray
Purpose of Use
Wave soldering
