High reliability wave soldering flux with ultra low flux residue

JS-E-3102

Low-residue flux with one-step-ahead reliability

Hydrophobic residue prevents migration

The residue of JS-E-3102 is made hydrophobic by adding a small amount of special rosin, which prevents the occurrence of leakage current. Ensures high electrical reliability even in highly humid environments.

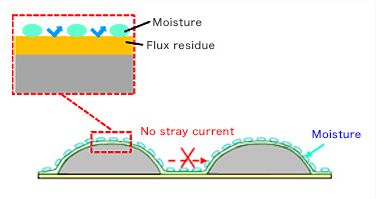

■Diagram of flux residue

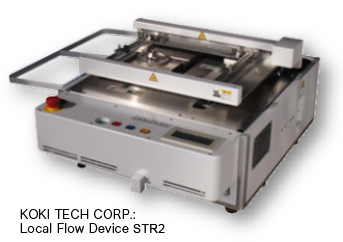

Fast drying at room temperature; ideal for selective soldering

Fast drying speed of the residue at room temperature enables soldering by local flowing where pre-heating is not conducted. After soldering the insulation resistance of the residue swiftly recovers, delivering high electrical reliability.

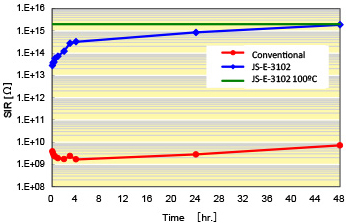

■SIR drying at room temp.(24-25℃ 30-40%RH)

Ultra-low residue after soldering

Reduction of residue was pursued for JS-E-3102, resulting in incredibly low solid content of 2.7% for highly reliable post flux series suitable for automotive applications.

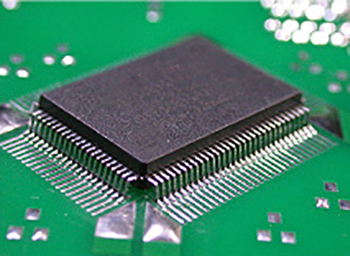

■After soldering

Product Performance Table

Product Name
JS-E-3102
Product Category
Liquid Flux for Wave / Selective Soldering
Solid Content(%)
2.7
Specific gravity (at 20℃)
0.795
Halide content(%)
0
Flux Type
ORL0 (IPC-J-STD-004A)
Application
Spray
Purpose of Use
Wave Soldering
