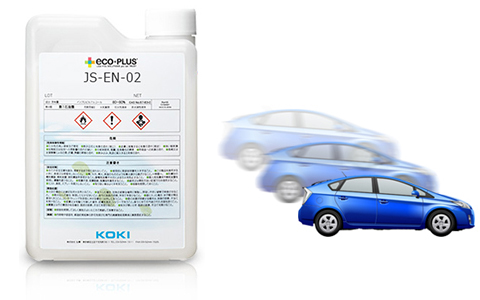

Wave soldering flux for N2 environment with low flux residue

JS-EN-02

Wave Soldering Flux Specialized for N2

Reduces solder balls even in N2 environment

In an N2 environment molten solder spreads over a wide area, resulting in ready formation of solder balls. JS-EN-02 applies a solder-ball reduction preparation specialized to usage in an N2 environment, which minimizes formation of solder balls.

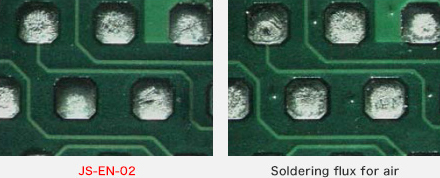

■After soldering

Superb insulation reliability; ideal for automotives

Activators are often the cause of moisture absorption. By taking advantage of an N2 environment where low activity can achieve high solderability, JS-EN-02 minimizes use of activators and retains its excellent insulation even in highly humid conditions.

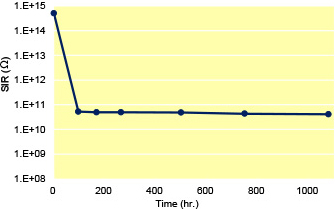

■EM Test (85℃ × 85%RH 1,000hrs, DC100V)

Minimal solids for amazingly low residue

JS-EN-02 applies a minimal amount of solid content required for wave soldering in an N2 environment, realizing ultra-low residue unlike usual rosin-type wave soldering flux.

■After soldering

Product Performance Table

Product Name
JS-EN-02
Product Category
Liquid Flux for Wave / Selective Soldering
Solid Content(%)
7.1
Specific gravity (at 20℃)
0.800
Halide content(%)
0
Flux Type
ROL0 (IPC-J-STD-004A)
Application
Spray
Purpose of Use
Wave soldering
