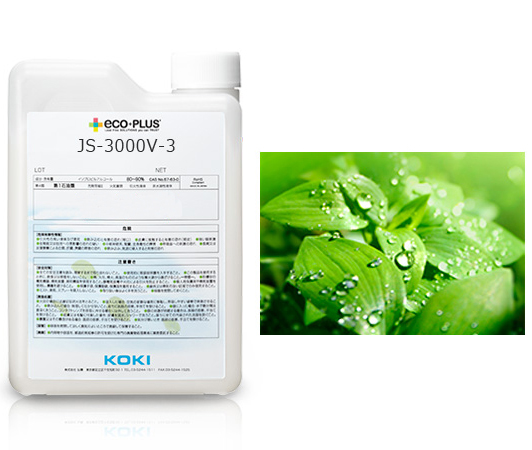

VOCs free water based wave soldering flux

JS-3000V-3

High performance flux of pure water

Easier management being non-dangerous goods

By using pure water instead of IPA, JS-3000V-3 completely removed VOCs. There is no handling regulation for JS-3000V-3 as dangerous goods in international transportations or storage, which reduces transportation costs and opens up dangerous goods storage room.

■ VOCs content

Solved problems of water-based flux

Special resin is added to improve the poor drying speed of water-based flux. Effectively reduces solder scattering, loss of flux, and resultant non-soldering and bridging.

■Soldering test : 2.0mm pitch

Ultra-low residue for a beautiful finish

JS-3000V-3 uses a combination of solids such as rosin and special resin. As a result, flux residue after soldering is hardly visible. Achieves a low-residue non-sticky beautiful finish.

■ QFP 0.65mm pitch

Product Performance Table

Product Name
JS-3000V-3
Product Category
Liquid Flux for Wave / Selective Soldering
Solid Content(%)
5.0
Specific gravity (at 20℃)
1.015
Halide content(%)
0
Flux Type
ORL0 (IPC-J-STD-004A)
Application
Spray
Purpose of Use
Wave soldering
Characteristics
VOCs Content 0%
