Printing adhesive

JU-50P

Multi-purpose printing adhesive
with consistent workability

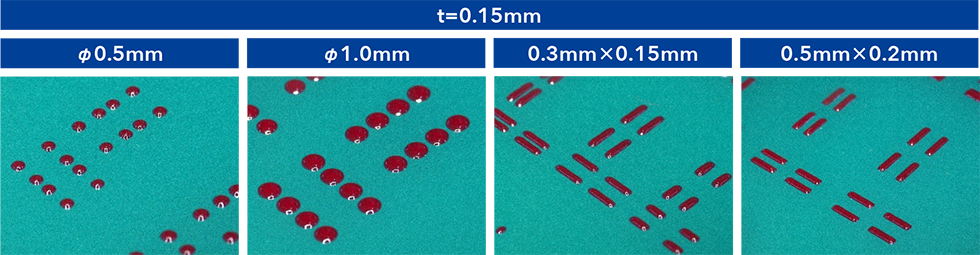

Stable printability and print shape

JU-50P achieves a consistent stencil release property regardless of the pattern size and shape.
It also secures stable print shape during continuous use.

Superior heat slump resistance

Heat slump of JU-50P during continual printing and curing is suppressed, resulting in improved post-printing shape retention.

No marine pollutant No transporting surcharge

JU-50P has no marine pollutant that falls into the UN hazardous materials transportation, allowing for international transportation in general cargo.

Product Performance Table

Product Name
JU-50P
Product Category
Heat Curable SMT Adhesive
Composition
Epoxy
State / Color
Paste・Red
Viscosity(Pa.s)
150
Tg(℃)
97
Curing condition
130ºC x > 60sec.
Shelf life (0-10℃)
6 months
